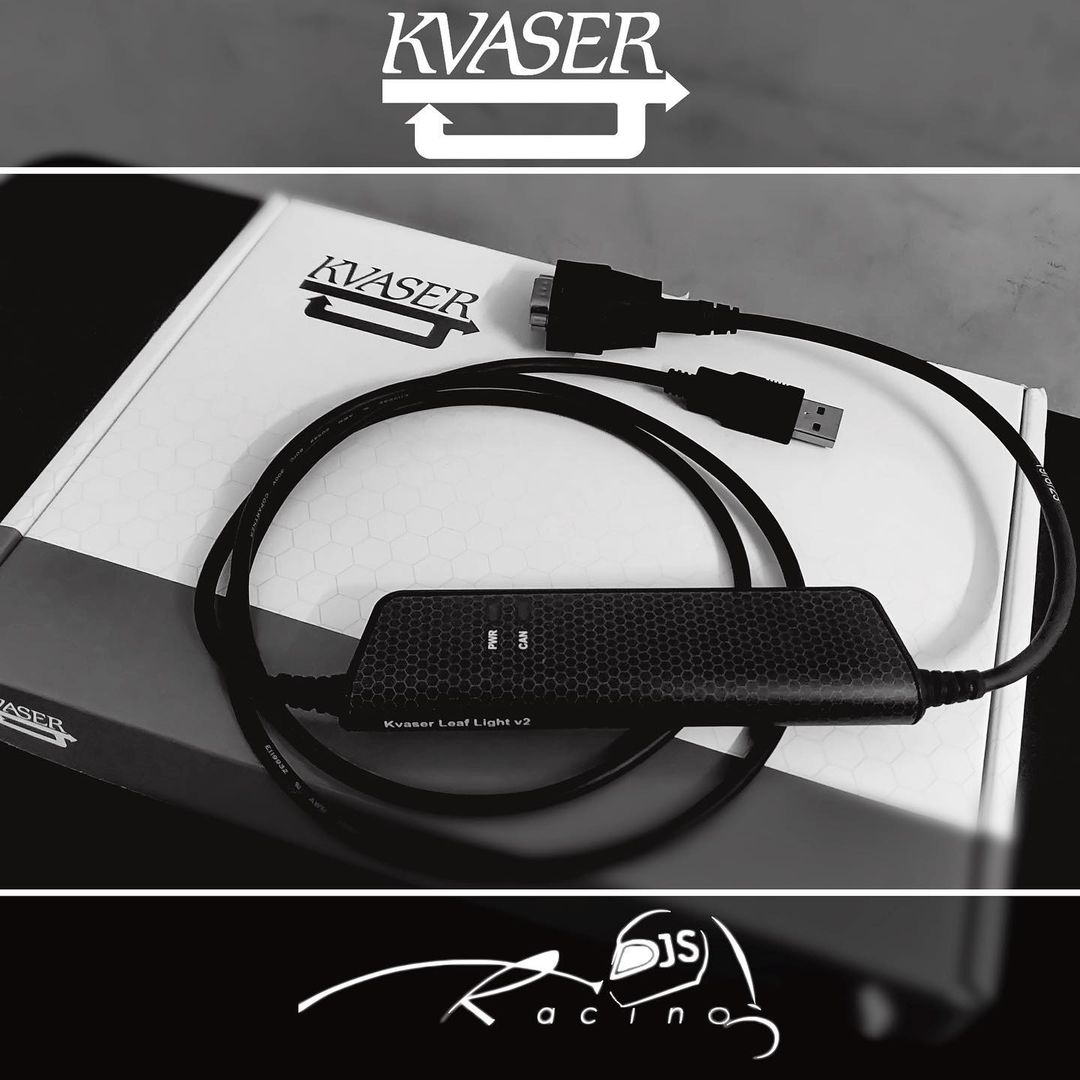

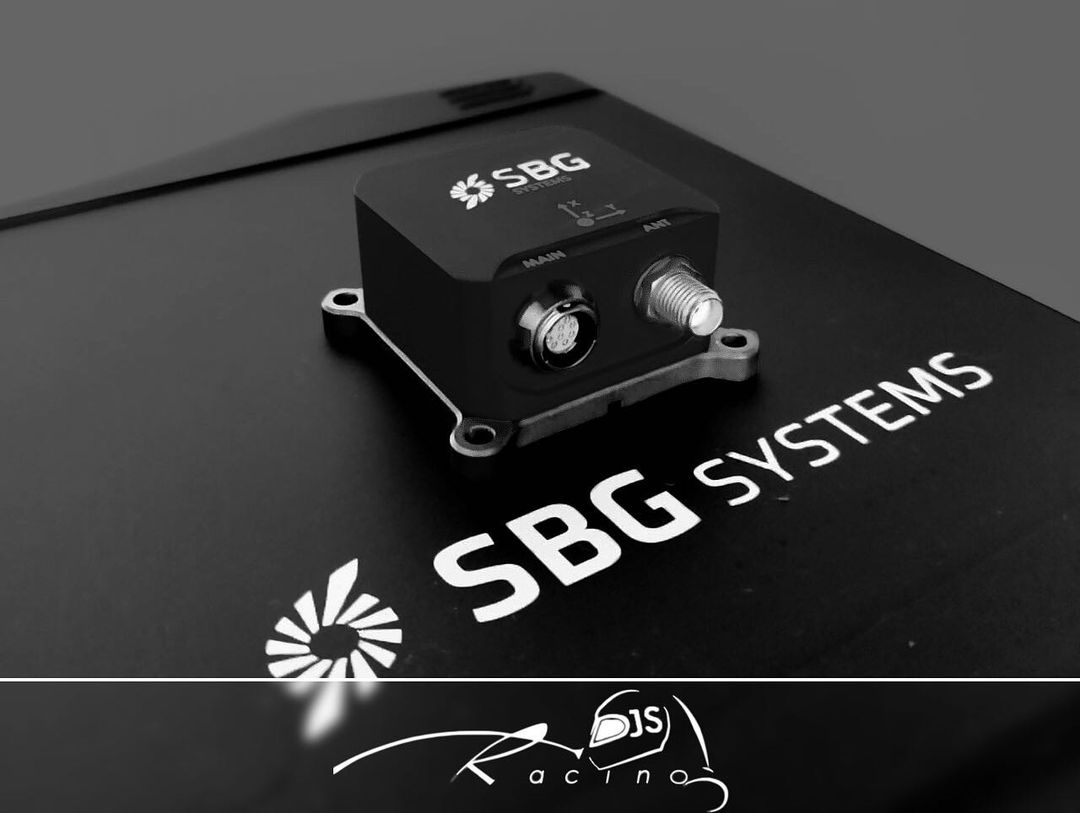

Special thanks to SBG Systems for sponsoring us the Ellipse-N IMU, JLCPCB for manufacturing the PCBs, Analog Devices, Kvaser, and TE Connectivity for the components.

SBG Kvaser Analog Devices

DJS Racing Driverless


The autonomous systems team of DJS Racing was formed back in early 2019 to develop a prototype vehicle. Alongside, we have also been developing the software that goes along with it. The team will use the software system presented below for the Formula Student Driverless competition in 2022 (postponed due to the outbreak of COVID-19).

About Formula Student Driverless

Formula Student Driverless (FSD) is the world’s largest autonomous racing competition, held annually in Hockenheim, Germany, in which multidisciplinary student teams compete with self-developed driverless racecars every year. In this competition, each team has to race their autonomous car across 5 disciplines - Acceleration, Skidpad, Autocross, and Trackdrive. In the main event, called Trackdrive, a car has to complete 10 laps on an unknown track autonomously as fast as possible against the clock. The track is defined by a set of traffic cones, blue cones on the left and yellow cones on the right-hand side[27].

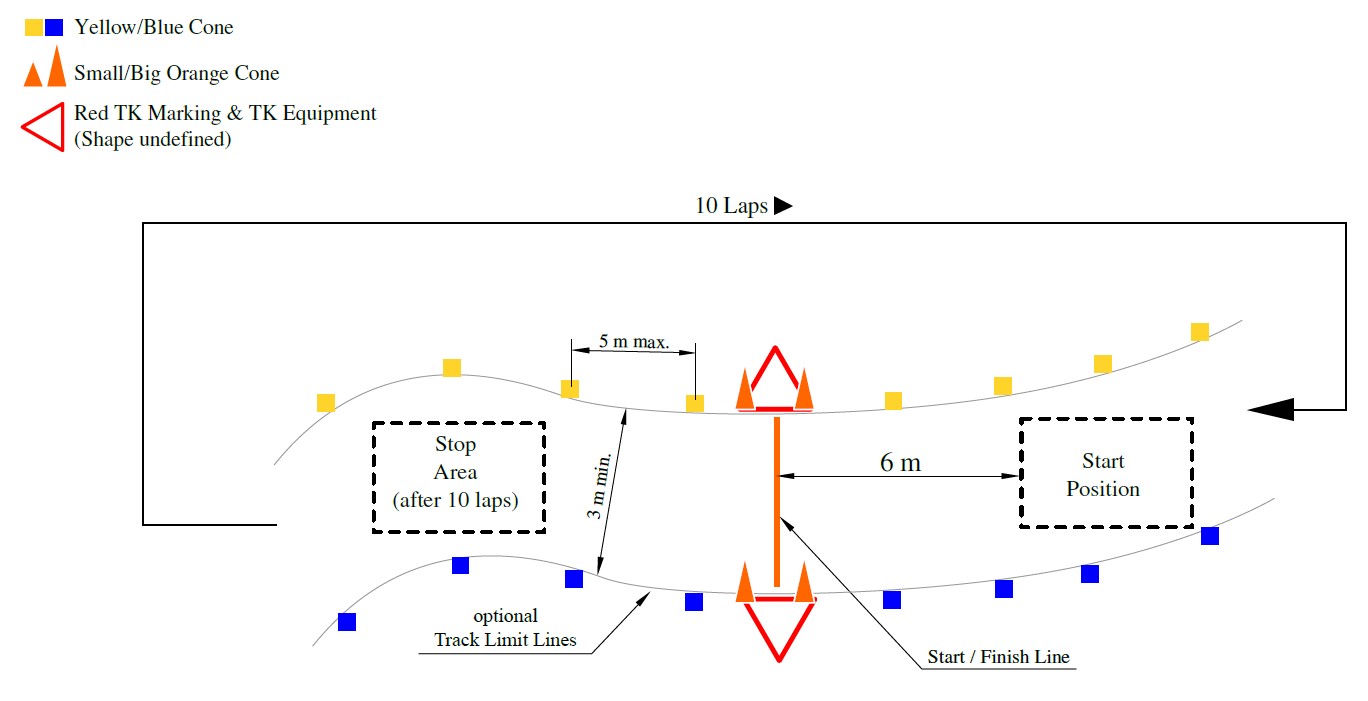

Track Layout

Track Layout

In this blog, I shall be describing the overall implementation of a Formula Student Driverless race-car by DJS Racing, India. The race-car can drive autonomously on unknown tracks and switch to Model Predictive Control after track exploration, mapping, and loop-closure detection in the first lap.

Software Architecture

We chose the Robot Operating System as our primary framework for software development. In order to run the MPC algorithm at its full potential, the track must be known at least 2s in advance for a speed of 85 kmph. With the current perception setup, it is not possible to achieve accurate mapping of the environment with a 40m (at 85 kmph) of look-ahead. Hence, we need to drive the first lap, exploring the track using a geometric controller such as the Pure Pursuit Controller[23][28] at a lower speed. After successful mapping and exploration of the track, the car switches to the more performant Model Predictve Control(MPC) for the subsequent laps to race as fast as possible. From this, we can define two modes of our system operation, SLAM mode, and localization mode. To count the number of laps and to detect loop closure, high-level mission planning is done using a finite state machine. This state machine guides to the system to switch between SLAM and localization mode and signals whether the race has finished. Interfacing between the onboard Jetson AGX Xavier and the STM32 is done using the ros-serial package. The STM32 runs FreeRTOS to achieve real-time control of actuators.

System Overview


High-level Architecture

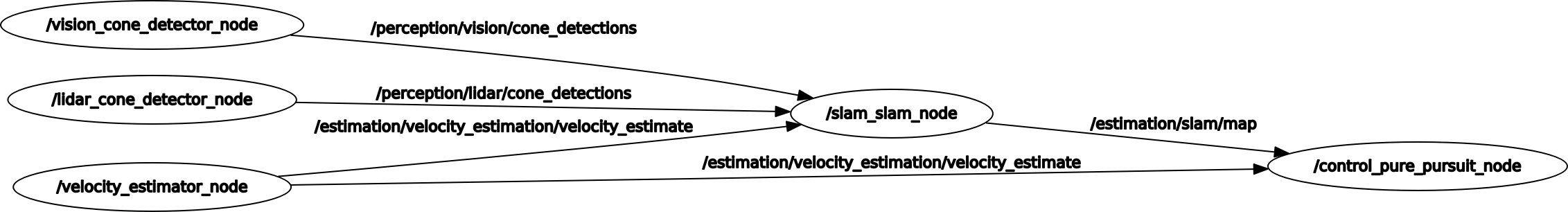

ROS Graph

3D Perception

The goal of the perception system is to detect traffic cones in the vicinity of the car and determine their color and 3D coordinates in real-time. These cone detections will be then fed as landmarks to the SLAM node to build a map of the track. The perception system takes input from multiple sensors - stereo camera, and a 3D LiDAR. The Basler Ace 2 industrial camera was chosen for our self-developed mono and stereo camera setups.

Multiple sources of visual information are chosen so as to increase the redundancy[22] in the system and to perceive the environment reliably as only one chance is given for the trackdrive race.

LiDAR 3D Object Dectection

3D Traffic Cone Detection using LiDAR Data

The point cloud obtained from the LiDAR is first segmented and the ground and out-of-track planes are removed. Afterwards, Euclidean clustering is run on the point cloud to cluster cone patches. The centroid of these cone patches is used to determine the 3D coordinates for each cone.

These clusters are also passed through a rule-based outlier filter to remove false cones in the map.

We don’t estimate the color for each detected cone since the computational costs don’t justify its use for this year and the path planning algorithm works just as well without color information.

Stereo 3D Object Dectection

In order to ensure redundancy in the system, an additional camera-based object detection pipeline is added to the system.

We have chosen an off-the-shelf object detector, YOLOv3[17] for object detection for real-time performance.

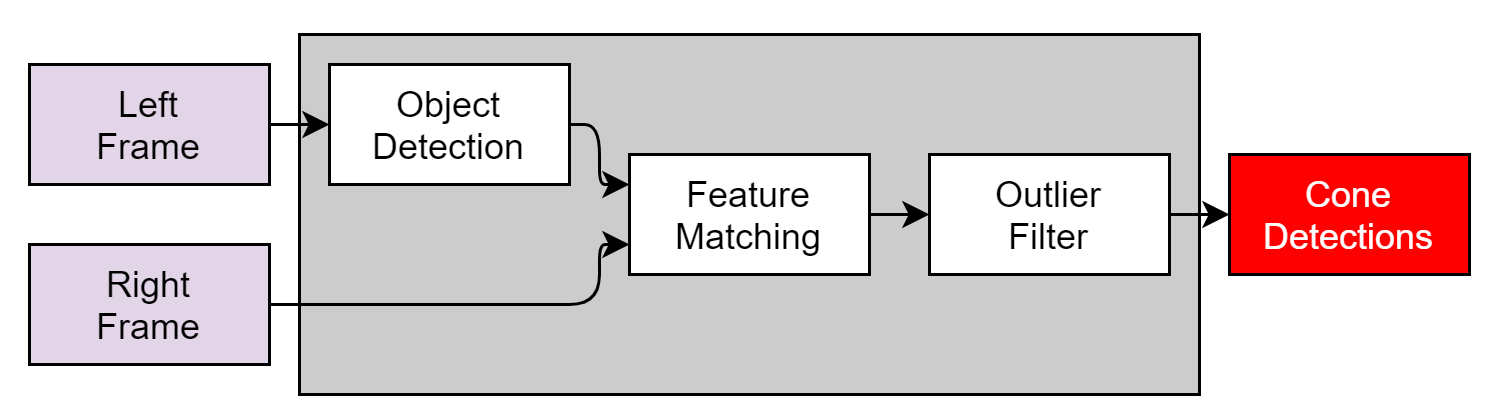

Stereo Object Detection Pipeline

Stereo Pipeline

YOLOv3 running on mock cones

Stereo feature matching is then performed using the Semi-Global Block Matching[32] (SGBM) algorithm to obtain the disparity map and 3D coordinates of the traffic cones.

3D point cloud obtained after occlusion reduction in the disparity map

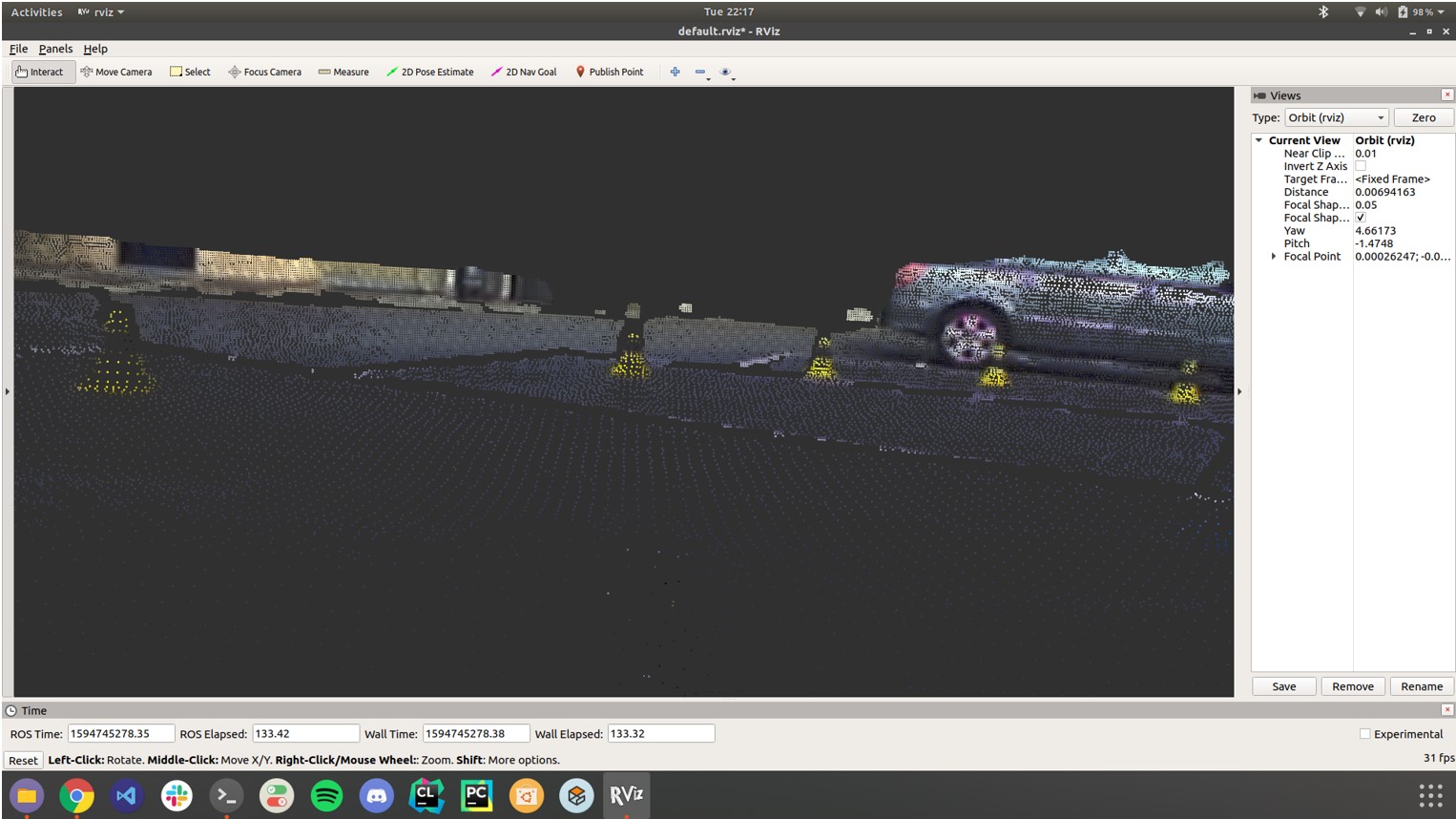

Stereo Depth

Occlusion of background cones is handled by outlier filtering.

Velocity Estimation and Simultaneous Localization and Mapping

The extended Kalman Filter was chosen as an estimator for mildly non-linear systems with white Gaussian noise. Our main task here is to fuse data from an Inertial Measurement Unit (SBG Ellipse N), 4 wheel encoders, steering angle sensor, and a dual GPS system in a moving baseline configuration. EKF is also computationally more efficient than the Unscented Kalman Filter[20] and allows us to estimate the state at 200 Hz. Here, the effects of lateral load transfer are ignored and the track is assumed to be a flat 2D surface.

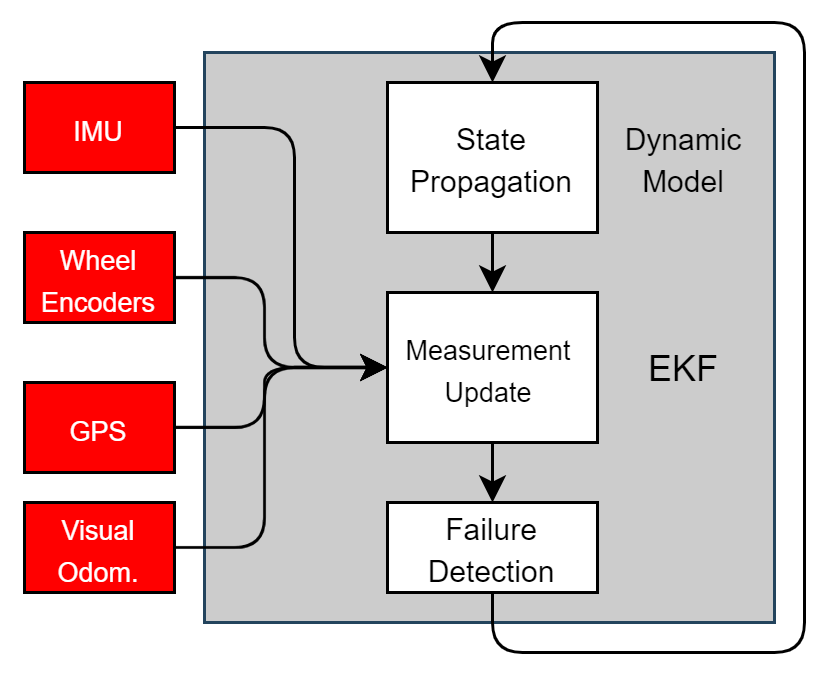

State Estimation Pipeline

Velocity Estimation

We consider that our system model is a constant velocity model (CTRV)[2], the jerk is assumed to be zero in this case and acceleration is used as a pseudo input to the system.

The wheel encoders along with the steering angle potentiometer are used to estimate the slip ratios of the vehicle.

The 6-DOF state vector is taken as

State Vector

Where p, θ, v are the position (along x and y), angular velocity, and the linear velocity (along x and y in car frame) of the car respectively.

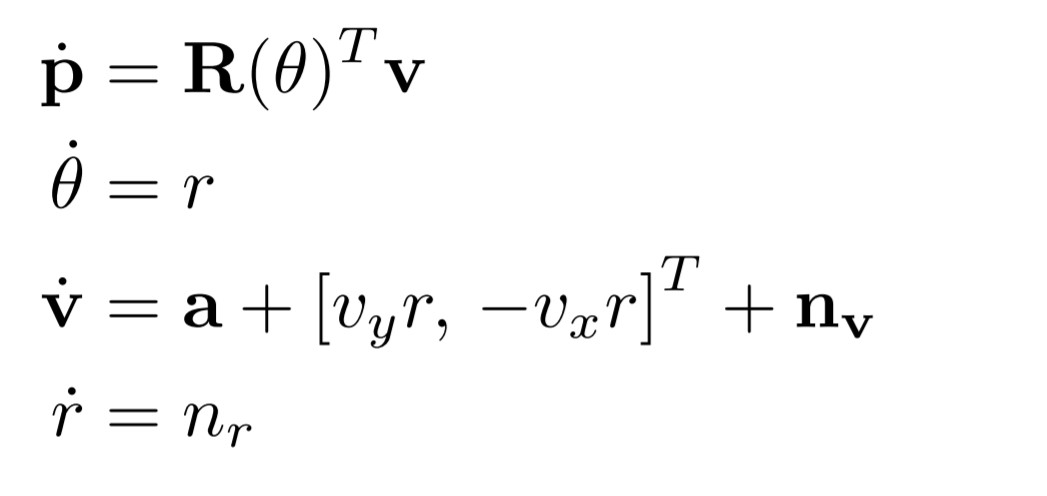

The process model is taken as

Process model

Where a is the linear acceleration measured by the IMU and R(θ) is the rotation matrix between the sensor frame and the vehicle frame.

The sensor model is

Sensor model

Where θs is the sensor heading in the body frame and n{.} are additive Gaussian white noises that corrupt the measurements.

Different sensors work at different rates and the accuracy also varies between the sensors. Hence, we use multiple update functions for each sensor and we update our beliefs asynchronously[26]. Here, the acceleration is taken from the IMU, angular velocity from the Gyroscope, and velocities from GPS and wheel encoders.

The landmark-based FastSLAM[8][15] algorithm was chosen for its robustness because of multiple-hypothesis and proposal sampling[3][31]. FastSLAM is computationally much more efficient with N.log(N) time complexity as compared to EKF SLAM with a quadratic complexity [19]. FastSLAM is also much more tunable owing to the fact that it uses a Rao-Backwellized particle filter to express pose estimates. We can simply tune the number of particles to adjust the runtime performance. Data association is done by comparing the mahalanobis distance between an observation and each landmark on the map.

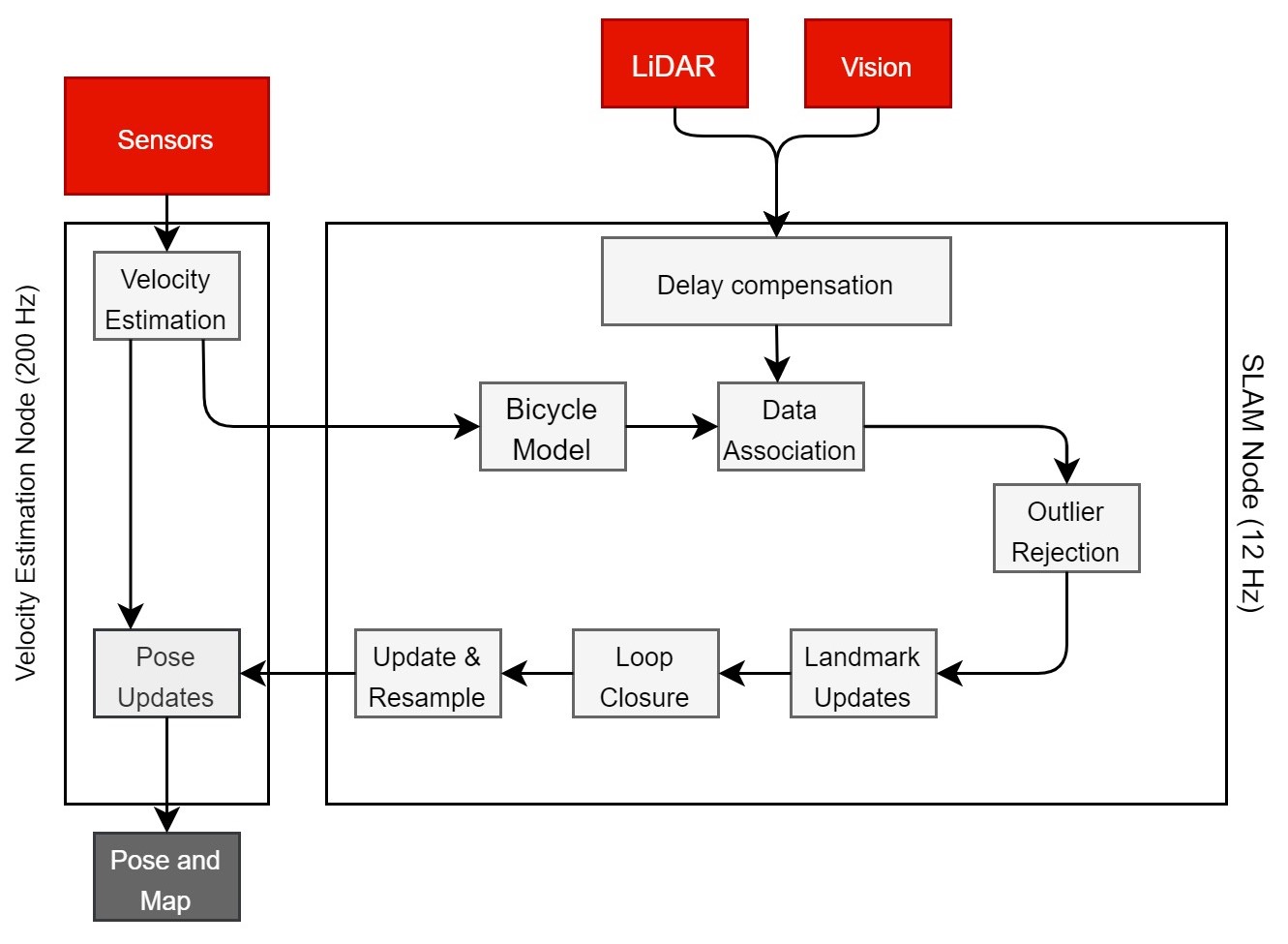

SLAM pipeline

Our SLAM pipeline runs at 15 Hz to accommodate for the perception pipeline operation rate. The pose estimates from the SLAM node are then integrated by the velocity with time by the velocity estimation node to provide fast pose updates at 200 Hz for the control algorithm. This ensures that the MPC node always receives the latest pose estimates.

Path Planning

RRT + Delaunay Triangulation for Waypoints Generation

We chose the Randomly Exploring Random Trees[24][25] as our path planning algorithms. Formula Student poses a unique challenge to path planning as there is no definite goal, and we just have to drive straight. Hence, in order to determine the best path, we have proposed a cost function that is assigned to each node. The tree branch with the lowest cost is then chosen as our desired path.

J = Q_delta * delta^2 + Q_theta * theta^2 + Q_cte * cte^2 - Q_cone * cone_count^2

  • delta: Angular deviation between two nodes. Avoids sharp turns.
  • theta: Discounted heading. Tree pointing backward to the car are penalized.
  • cte: Distance between the path and track boundary. Penalizes branches too close to the boundaries.
  • cone_count: Count of cones on both sides of the path. Penalizes shorter paths.

The cost is then normalized between 0 and 1 to determine the best path.

However, this is not the appropriate approach to path planning in FSD, as we need to have a continous and smooth trajectory in order to ensure that we are driving close to the limits of handling. Hence, we have an additional step of running Delaunay triangulation[13] on nearby cone positions. The intersection points of the best tree branch and the traingulation segments are then taken as the waypoints for the control algorithm.

The waypoints that are generated are depicted as blue dots along the track center-line.

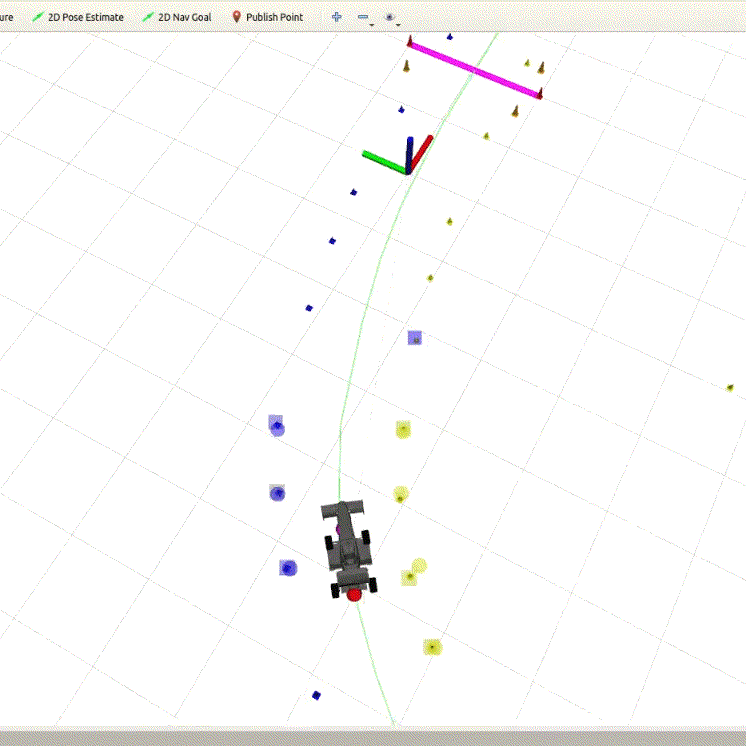

Model Predictive Control

After finishing the first lap using the PID and Pure Pursuit Controller, loop closure is detected and the SLAM algorithm switches to localization mode. This is all handled by the mission planning node. After track exploration and mapping, we switch to Model Predictve Control[18] as our control method to finish the race as fast as possible at the limits of handling in real-time.

The goal of the optimization problem is to drive the car along the reference path, following imposed contraints and targeting the desired velocity. The state dynamics is considered as a bicycle model with actuator and drivetrain models along with tire forces.

Dynamic Bicycle Model

We consider the dynamic bicycle model for vehicle dynamics[9][14] with non-linear magic tire formula models[16].

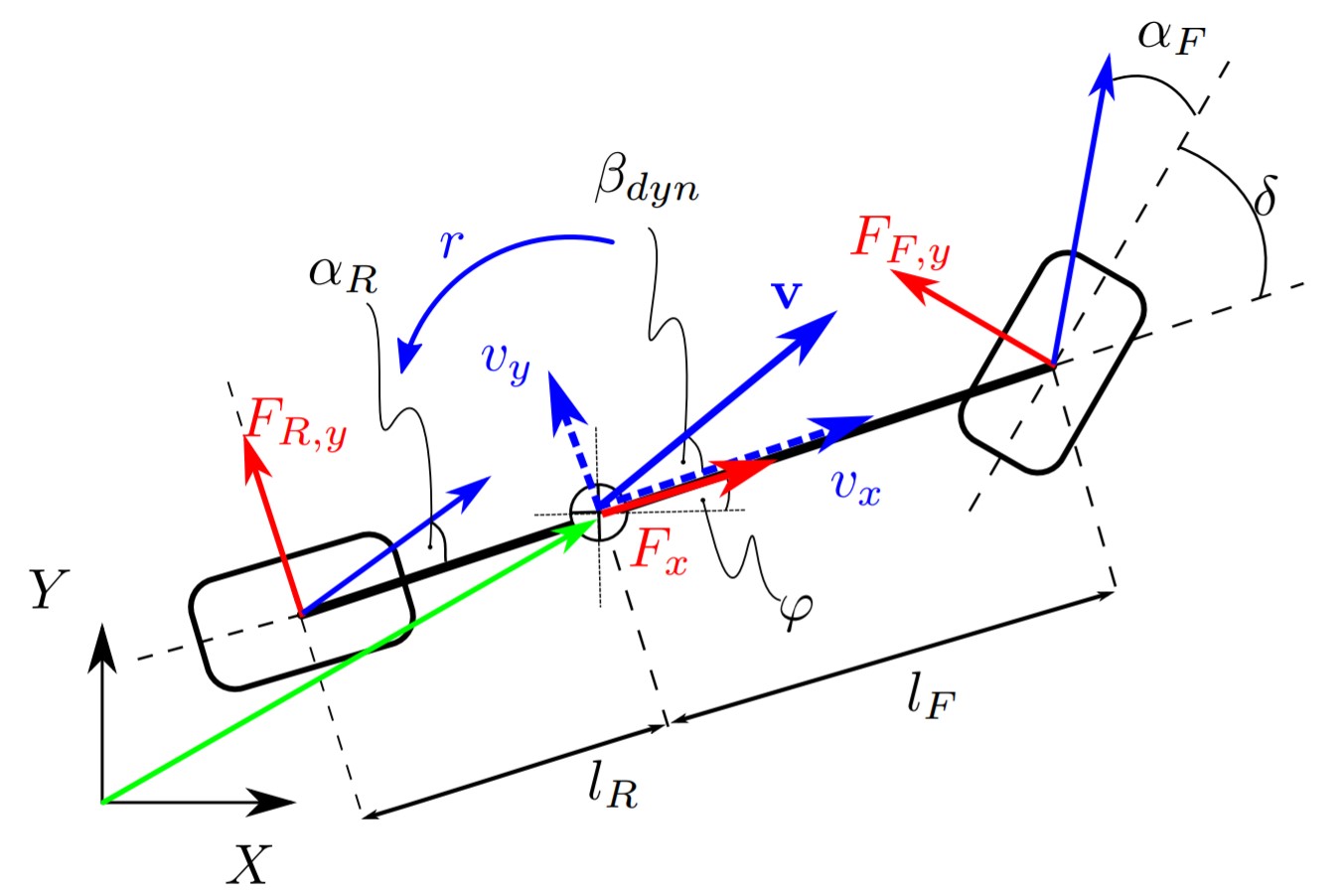

Dynamic model

Vehicle Dynamics

Vehicle dynamics

Where X, Y is the position and is the orientation of the car in the world frame. Vx, Vy, and ω are the linear and angular velocities of the car in the body frame respectively. 𝛿 is the steering angle, Lf and Lr are the length from the front and rear axles to the center-of-gravity respectively and Iz is the inertia moment.

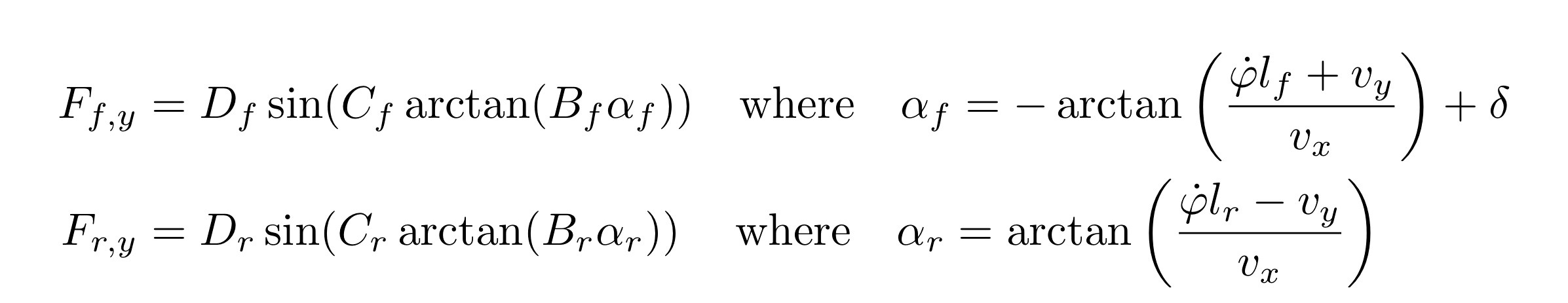

Tire Model

Tire model

Tire model x

Here D, C, B are coefficients obtained from the Pacejka tire model. d is the driving command (acceleration), Cr is the rolling resistance, α{f, r} are tire slip angles, and Cd is the drag coefficient. m is the mass of the vehicle.

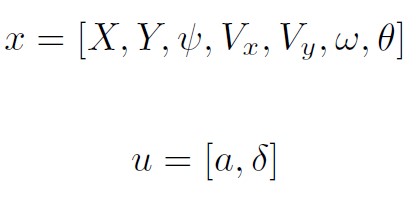

State Input

State input

The lateral and cross-track errors are defined as

cte` = cte - v * sin(epsi) * dt
epsi` = epsi + v / Lf * (-delta) * dt

And hence, the cost function is defined as

J = Q_cte * cte^2 + Q_epsi * epsi^2 + Q_v * (v - vmax)^2 + Q_delta * delta^2
+ Q_a * a^2 + F * (a` - a)^2 + Q_ddelta * (delta` - delta)^2

The objective of this optimization problem is to drive the vehicle as close as possible to the track center line, with heading along the track direction. Rapid changes in the state inputs, as well as linear and angular velocities, are penalized.

this slowpoke moves

The optimization problem is then solved directly using the IPOPT non-linear optimization library[6] in a receding horizon fashion for over 15 steps for a horizon of 1.5 secs. There is an approximately 100 ms delay between computed command and actuation, hence we choose an actuator vector in the future (about 100 ms in the future) to compensate for mechanical delays.
However, an improvement is required here as IPOPT is not designed for real-time systems and considerably slows down with an increase in sequence size[30]. Hence, we need to use a convex optimization library such as HPIPM[29].

Simulation and CI/CD Infrastructure

Simulation Environment Designed with Gazebo[12] and Ignition Libraries

The FSSIM [4] simulation framework by AMZ Driverless has been used for the codebase. The FSSIM simulator uses a Gazebo plugin that uses a basic vehicle model which is discretized with Euler Forward discretization to achieve 99% of real-world performance.

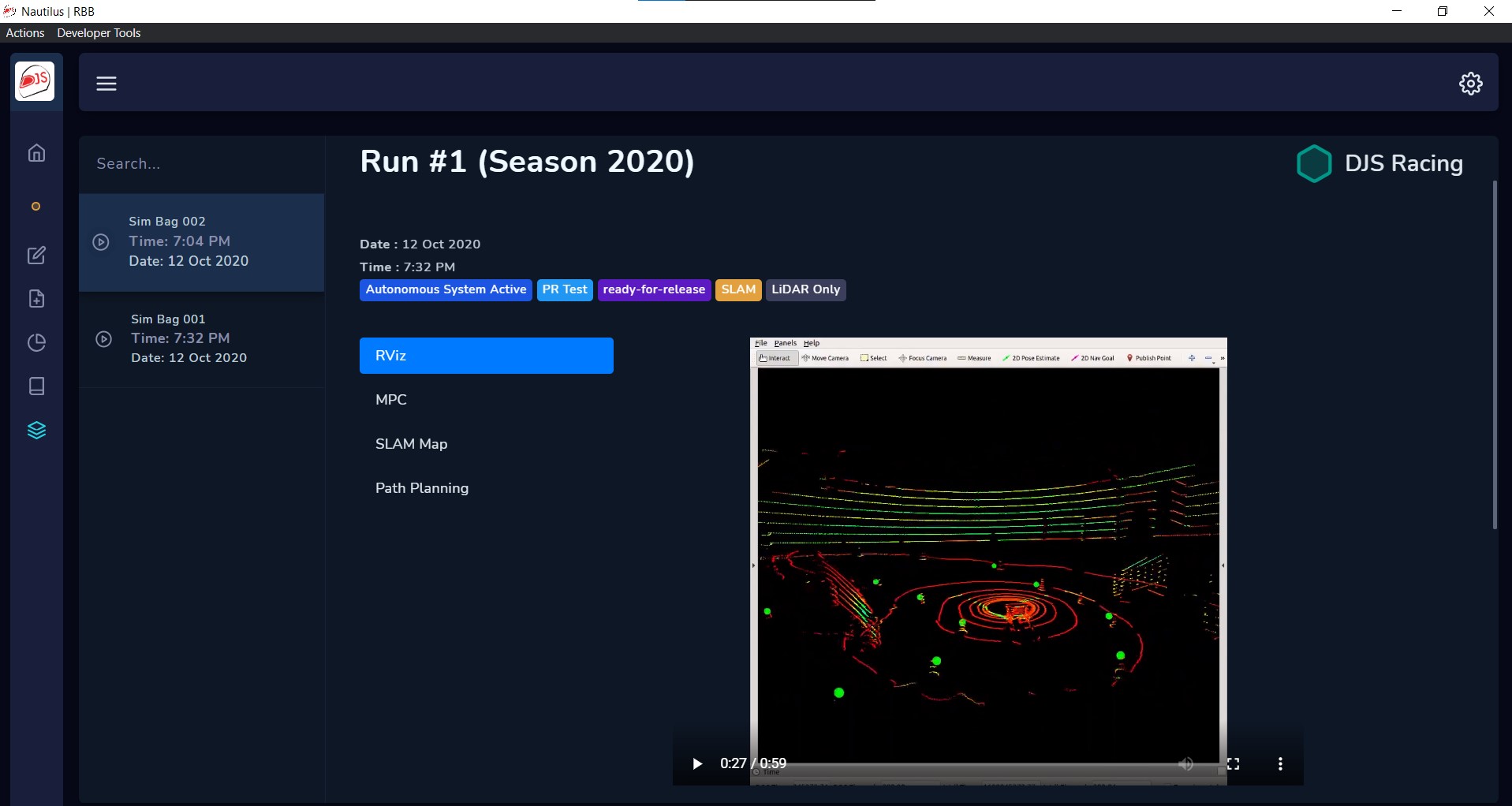

ROS Bags from GitHub Pull Requests and actual car races can be visualized in the app

ROS Bag Visualization

The simulation framework, on every pull request, runs the codebase and important ROS topics are recorded into ROS Bags and uploaded to the server. Each ROS Bag is played on the remote server and the run is recorded using VirtualGL, the videos are then stored in a NoSQL database for backup and querying. The client app can establish a remote database connection to visualize the ROS Bags. The server automatically replays the bag file and stores the recorded videos. To ensure software reliability, each pull request is first compiled using GitHub Actions and run on our CI server hosted on AWS. Only after all checks have passed and the simulation runs without any issues, a pull request can be merged.
